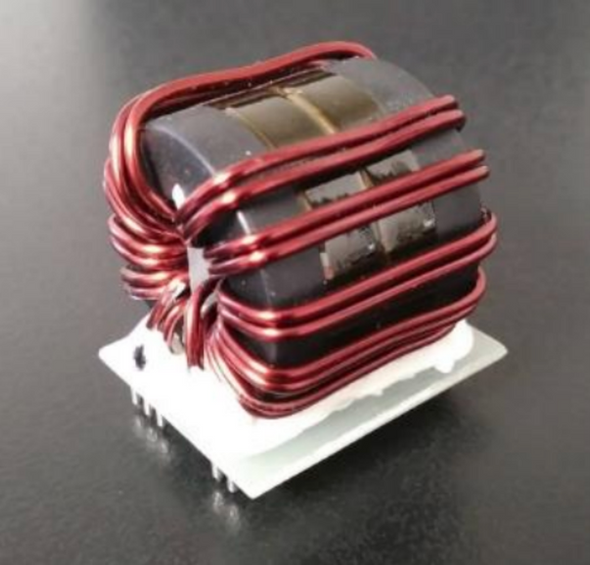

7KW Common Mode Choke

11545-GR

  • AECQ200 Qualified

  • ROHS Compliant

  • Designed, tested and manufactured for 300,000 KM (15 years)

  • Custom footprint and additional turns options available

Electrical Characteristics @ 25c

  • Isolation, pin 1 to 3: 2700 VDC, 6 s, 5 μA max

  • Inductance, pin 1 to pin 2: 1.16 mH ± 30% at 100 kHz 0.10 VRMS

  • Inductance, pin 3 to pin 4: 1.16 mH ± 30 % at 100 kHz 0.10 VRMS

  • Leakage Inductance, pin 1 to 2, short pin 3 & 4: 3.0 μH max. at 100 kHz 0.10 VRMS

  • DCR, pin 1to 2: 2.8 m ± 15%

  • DCR, pin 3 to 4: 2.8 m ± 15%

  • Insulation Resistance, pin 1 to pin 3: 100 M min. at 500 VDC


Design Parameters

  • AMBIENT TEMPERATURE: -40oC TO + 105o C

  • OPERATING TEMPERATURE: -40oC TO + 155oC

  • STORAGE TEMPERATURE RANGE: -10o TO +55oC
