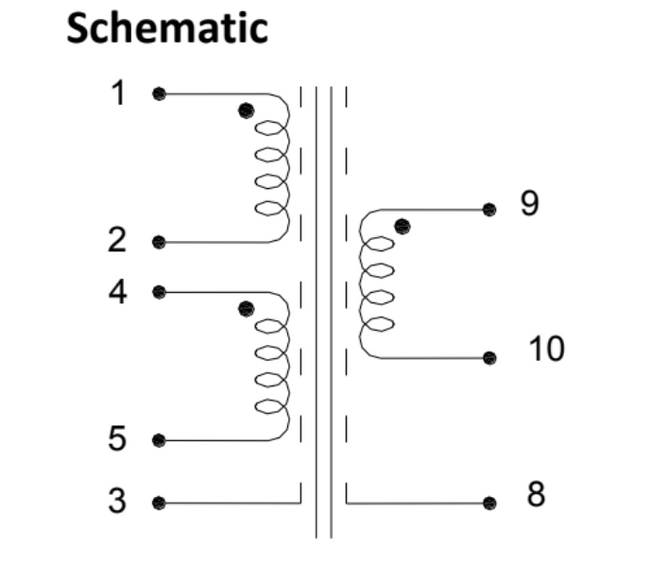

Electrical Characteristics @ 25c

• ISOLATION, PIN 9 TO PINS 1 & 4: 2900 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• ISOLATION, PIN 3 TO PIN 8: 2900 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• ISOLATION, PIN 1 TO PIN 8: 3200 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• ISOLATION, PINS 1 & 3 TO PIN 4: 500 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• ISOLATION, PIN 4 TO THE CORE: 500 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• ISOLATION, PIN 3 TO PIN 4: 500 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• ISOLATION, PIN 8 TO PIN 9: 500 VDC FOR 6 SECONDS, 5 μA MAXIMUM

• INDUCTANCE @ 10 kHz 1.0 VRMS, PIN 1 TO PIN 2: 100 μH ± 20%

• LEAKAGE INDUCTANCE @ 10 kHz 1.0 VRMS, PIN 1 TO PIN 2: 1 μH MAXIMUM

• POLARITY PINS 1, 4, & 9 ARE THE SAME

• TURNS RATIO, PINS 1 - 2 TO PINS 4 - 5 AND PINS 7 – 10: 10 : 20  1%

• DCR, PIN 1 TO PIN 2: 98 m  15 %

• DCR, PIN 4 TO PIN 5: 242 m  15 %

• DCR. PIN 9 TO PIN 10: 320 m  15 %

Design Parameters

• AMBIENT TEMPERATURE: -40oC TO + 105o C

• OPERATING TEMPERATURE: -40oC TO + 155oC

• STORAGE TEMPERATURE RANGE: -10o TO +55oC
