SMT Flyback Transformer

11546-GR

  • AECQ200 Qualified

  • ROHS Compliant

  • Designed, tested and manufactured for 300,000 KM (15 years)

  • Custom footprint and additional turns options available

Electrical Characteristics @ 25c

  • Isolation, pins 4&5 to 7 : 2700 VDC, 6 s, 5 μA max.

  • Isolation pin 4,5,& 7 to core500vdc, 6s 5μA max

  • Inductance, pins 4,5 to pins 1,2 1.5 μH ± 15% @ 200kHz 0.1 VRMS

  • Inductance, pins 4,5 to pins 1,2 1.1 μH minimum @ 200 kHz 0.1 VRMS & 8.2 ADC

  • Leakage Inductance, pins 4,5 to pins 1,2 Pins 7&9 shorted 0.1 μH maximum @ 200 kHz 0.1 VRMS

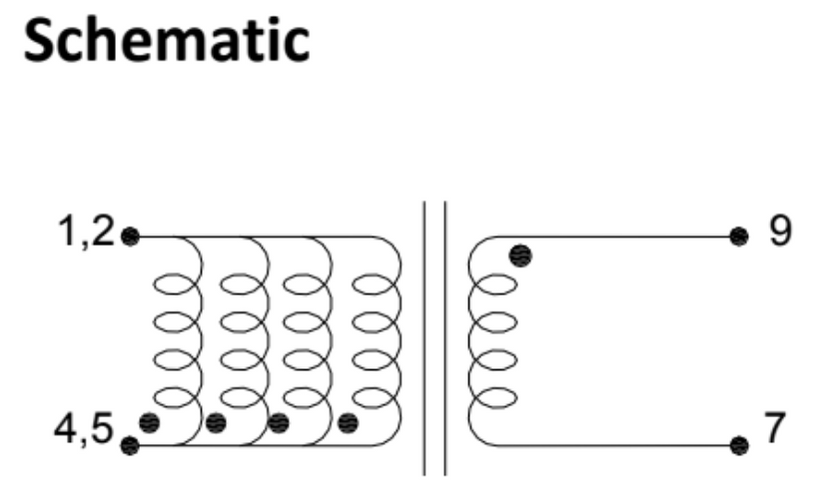

  • Turns ratio pins 4,5 – 1,2 to pins 7 – 9 5:65

  • DCR, pins 4,5 to 1,2: 8.5 mΩ ± 15%

  • DCR, pin 9 to 7: 590 mΩ ± 15% **


Design Parameters

  • AMBIENT TEMPERATURE: -40oC TO + 105o C

  • OPERATING TEMPERATURE: -40oC TO + 155oC

  • STORAGE TEMPERATURE RANGE: -10o TO +55oC
