Vertical High Current Sense Transformer

11549-GR

  • AECQ200 Qualified

  • ROHS Compliant

  • Designed, tested and manufactured for 300,000KM (15 years)

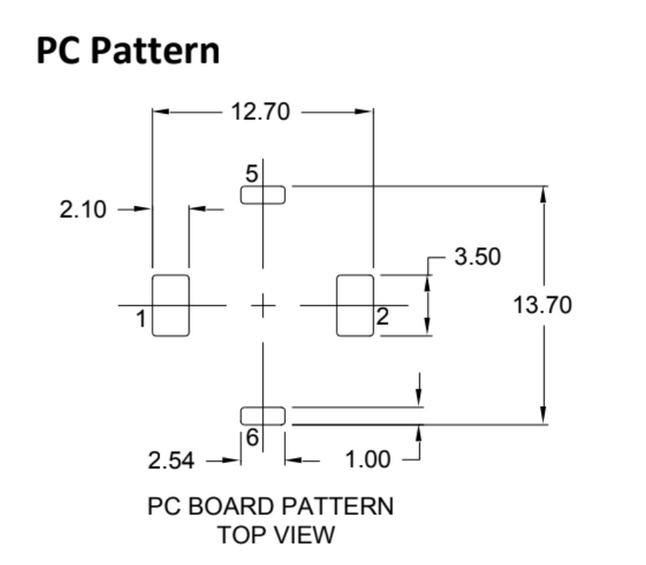

  • Custom footprint and additional turns options available

Electrical Characteristics @ 25c

  • Isolation, Pin 1 & 2 to 5 & 6: 3000 VDC, 2 s, 5 μA max.

  • DCR, pin 5 to 6: 480 mΩ ± 15%

  • DCR, pin 1 to 2: 2.0 mΩ max.

  • Inductance, pin 5 to 6: at 100 kHz and 0.02 VRMS, 10.29 mH ±25%

  • Polarity pins 1, & 5 are the same.

  • Turns, pin 5 to 6: 100 exactly.



Design Parameters

  • AMBIENT TEMPERATURE: -40oC TO + 105o C

  • OPERATING TEMPERATURE: -40oC TO + 155oC

  • STORAGE TEMPERATURE RANGE: -10o TO +55oC
