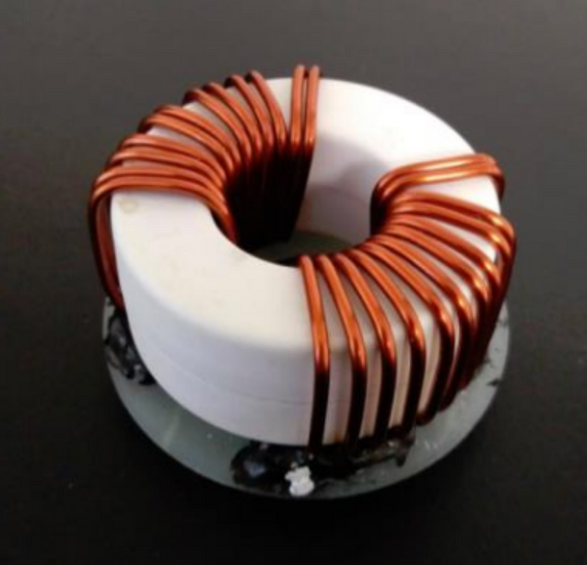

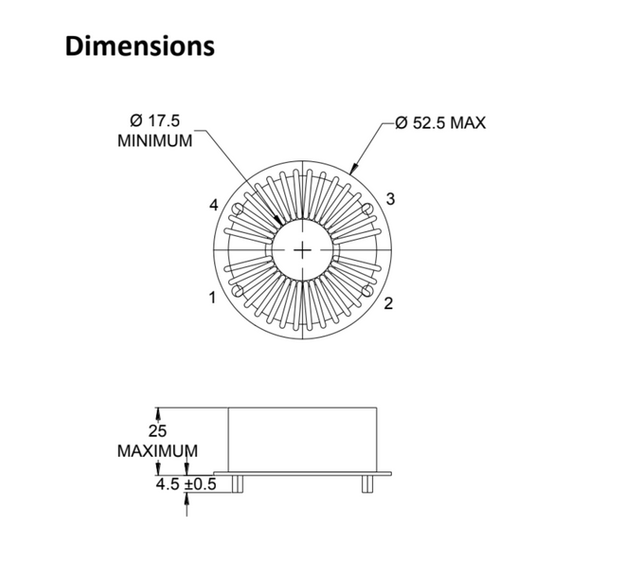

Wireless Common Mode Choke

PN 11544-GR

  • AECQ200 Qualified

  • ROHS Compliant

  • Designed, tested and manufactured for 300,000 KM (15 years)

  • Custom footprint and additional turns options available

Electrical Characteristics @ 25c

  • Isolation between windings 1000 VDC

  • Inductance, pin 1 to pin 2: 1.9 mH ± 30% at 50 kHz 0.10 VRMS

  • Inductance, pin 3 to pin 4: 1.9 mH ± 30 % at 50 kHz 0.10 VRMS

  • DCR, pin 1 to 2: 2.0 mΩ ± 15%

  • DCR, pin 3 to 4: 2.0 mΩ ± 15%


Design Parameters

  • AMBIENT TEMPERATURE: -40oC TO + 105o C

  • OPERATING TEMPERATURE: -40oC TO + 155oC

  • STORAGE TEMPERATURE RANGE: -10o TO +55oC

man and pannels
Ready to Discuss Your Magnetic Design?

Start the conversation, our engineering team is here to help.

Wireless Common Mode Choke

AEC-Q200 qualified, RoHS compliant common mode choke designed for high-reliability wireless and automotive applications.

Electrical Characteristics @ 25c

  • Isolation between windings 1000 VDC

  • Inductance, pin 1 to pin 2: 1.9 mH ± 30% at 50 kHz 0.10 VRMS

  • Inductance, pin 3 to pin 4: 1.9 mH ± 30 % at 50 kHz 0.10 VRMS

  • DCR, pin 1 to 2: 2.0 mΩ ± 15%

  • DCR, pin 3 to 4: 2.0 mΩ ± 15%


Design Parameters

  • AMBIENT TEMPERATURE: -40oC TO + 105o C

  • OPERATING TEMPERATURE: -40oC TO + 155oC

  • STORAGE TEMPERATURE RANGE: -10o TO +55oC
